Outlet Tube

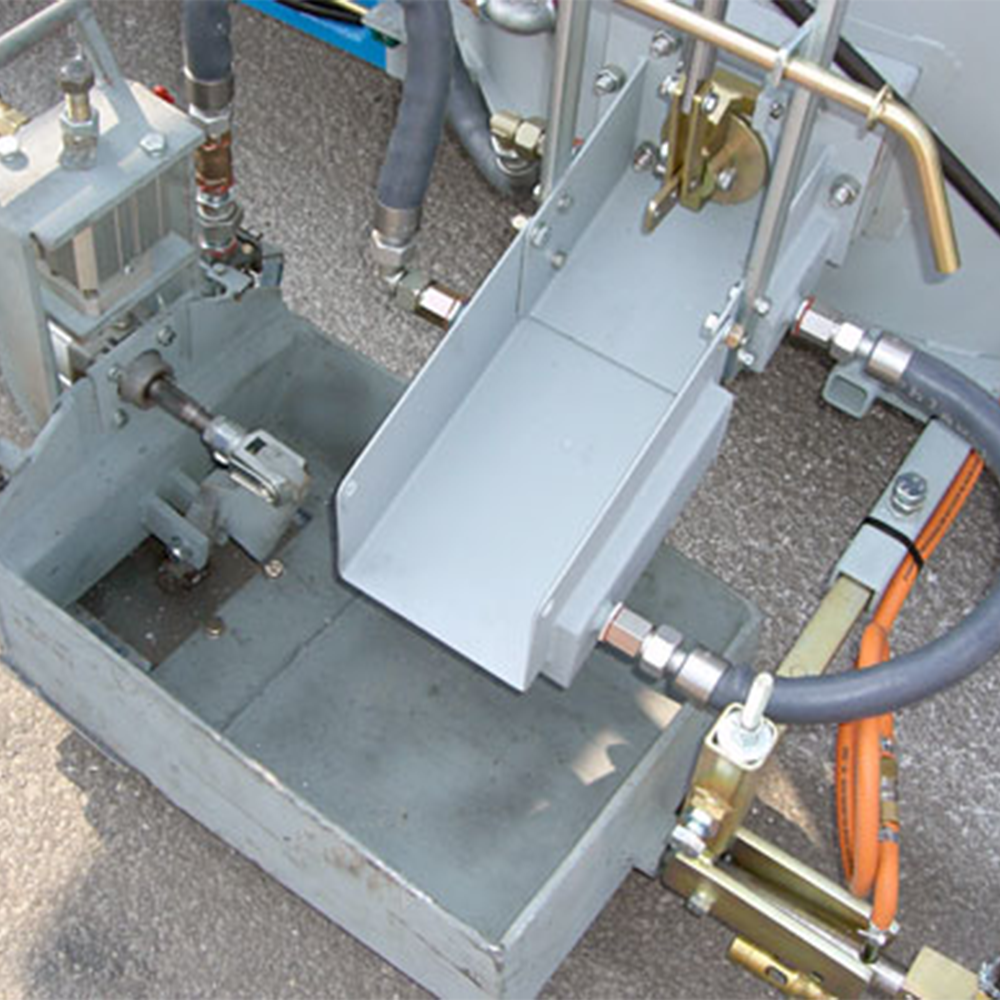

The Thermal Oil‑Heated Discharge Trough with Pneumatically Actuated Outlet Valve for Thermoplastics in Draw‑Shoe Application is a specialized thermoplastic application component designed to deliver consistent material flow in draw‑shoe road marking systems. It combines a thermally maintained trough with a pneumatically controlled outlet valve to support steady extrusion of heated thermoplastic, even under demanding conditions. This assembly helps maintain optimal material temperature throughout the delivery path, supporting uniform line quality. It is ideal for contractors who require dependable thermoplastic application over long stretches of roadway.

At the core of this system is a thermal oil‑heated trough that surrounds the heated thermoplastic path, reducing heat loss from the material before it reaches the draw‑shoe head. The integrated pneumatic outlet valve allows precise control of thermoplastic discharge, enabling operators to start and stop material flow accurately without manual intervention. The design supports continuous delivery to the draw‑shoe, reducing interruptions and helping maintain consistent bead profiles. This integration of thermal management and pneumatic control makes the system suitable for extended marking runs.

This discharge assembly is particularly beneficial in environments where ambient conditions can rapidly cool thermoplastic material, such as in open highways or cooler climates. By maintaining heat along the trough and controlling discharge through pneumatic actuation, it helps prevent premature solidification or inconsistent flow. Operators benefit from a reliable component that works in concert with the marking machine’s material system to support quality results across varied surface and weather conditions. The overall effect is smoother material handling and reduced risk of line defects during application.

As a precision thermoplastic delivery accessory, Leader Infra supplies this heated trough and valve system to contractors working with draw‑shoe marking machines. It integrates with compatible equipment, supporting both high‑volume and detailed thermoplastic applications. The system’s robust build and controlled discharge features make it a practical choice for intensive infrastructure marking tasks.

FAQ — Why does a pneumatically actuated outlet valve help thermoplastic marking? It allows the operator to control material flow quickly and reliably using air pressure, improving start/stop accuracy and reducing manual handling during continuous thermoplastic application.
