GeoLoc PE Locator – PE Gas Pipes

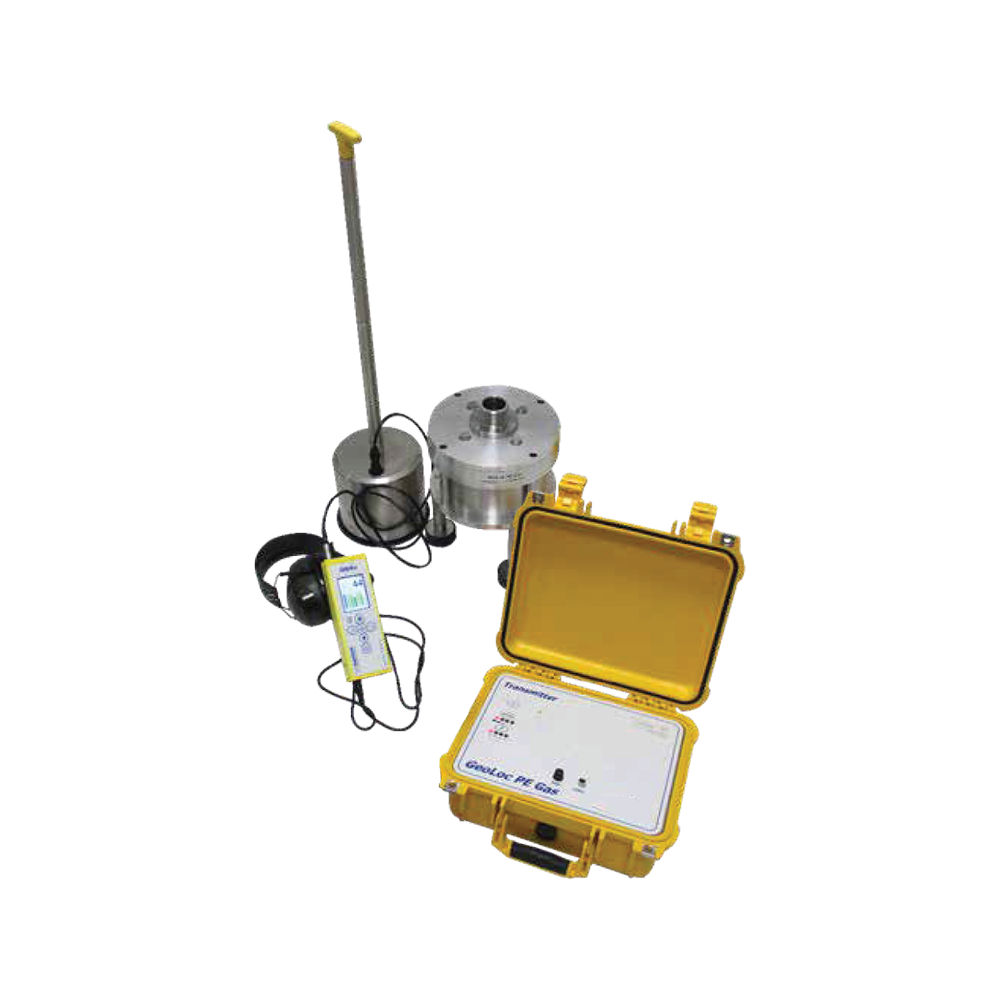

The Gastech GeoLoc PE Gas Locator is a professional electro-acoustic polyethylene pipe location system available in three variants — GeoLoc PE Tone 250 ATEX (50W), GeoLoc PE Tone 500 Radio ATEX (100W), and GeoLoc PE Tone 900 Radio ATEX (200W). All variants operate on the same acoustic transmission principle: a complex sound wave is injected directly into the pressurized polyethylene pipeline via an electro-acoustic transducer connected to a valve or service point, and a handheld DSP (Digital Signal Processing) receiver detects and selectively amplifies the signal above ground to trace the pipe route. The 250 variant uses a DN 6″ transducer at up to 50W output with two locating frequencies — 250 Hz and 500 Hz — and a 2.5-inch handheld receiver display. The 500 Radio variant upgrades to a DN 6″ transducer at 100W and a DN 10″ transducer at 200W, an 8-inch color touchscreen receiver, and four selectable locating frequencies — 200, 250, 400, and 500 Hz. Maximum operating pressure for all variants is 6 bar. All carry ATEX certification for use in classified gas atmosphere zones.

The DSP receiver architecture applies selective digital filtering in real time, isolating the injected acoustic signal from ambient urban noise — including traffic, crowds, and road machinery — that would mask the signal in conventional listening-based pipe location methods. The operator follows the signal strength reading on the receiver display along the road surface above the buried pipe, tracing the route and identifying depth by signal strength variation. Selective filters remove interference from nearby metallic pipes, cables, and other buried services that could otherwise produce false routing indications. The system is the primary solution for polyethylene gas pipes where no electromagnetic induction signal — used by conventional pipe locators on metallic pipes — can be generated.

The Gastech GeoLoc PE Gas Locator is deployed by gas network operators, pipeline contractors, and utility survey teams for locating buried polyethylene gas pipelines before excavation, connection work, road crossing assessments, and network mapping updates — particularly where existing network maps are outdated or inaccurate, and where conventional electromagnetic cable and pipe locators cannot detect the non-metallic pipe material.

Leader Infra supplies the full GeoLoc PE Gas Locator series for gas network operators and pipeline survey teams — providing ATEX-certified DSP-filtered electro-acoustic polyethylene pipe location from a single system family covering 50W to 200W output power and two to four selectable locating frequencies.

FAQ — Why can conventional electromagnetic pipe locators not detect buried polyethylene gas pipelines? Conventional pipe locators work by inducing an electromagnetic signal into a metallic pipe or cable and detecting the resulting electromagnetic field above ground. Polyethylene is a non-conductive, non-magnetic material — it neither conducts electricity nor responds to electromagnetic induction — so no detectable field is produced. The GeoLoc PE system bypasses this limitation entirely by injecting a physical acoustic wave directly into the pressurized gas inside the pipe, which the pipe wall then conducts to the surrounding ground as a detectable vibration signal.
