CIRCLE-X LIGHTING FOR HOSPITAL HELIPADS

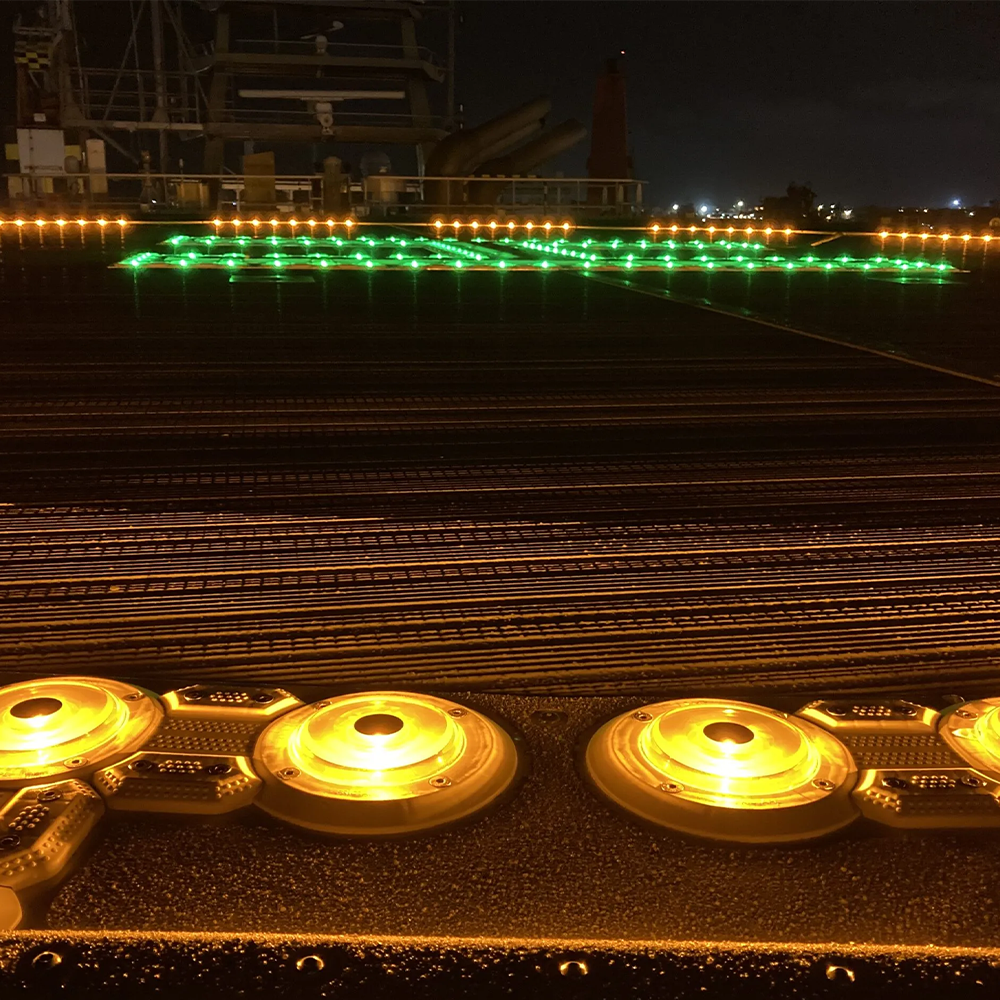

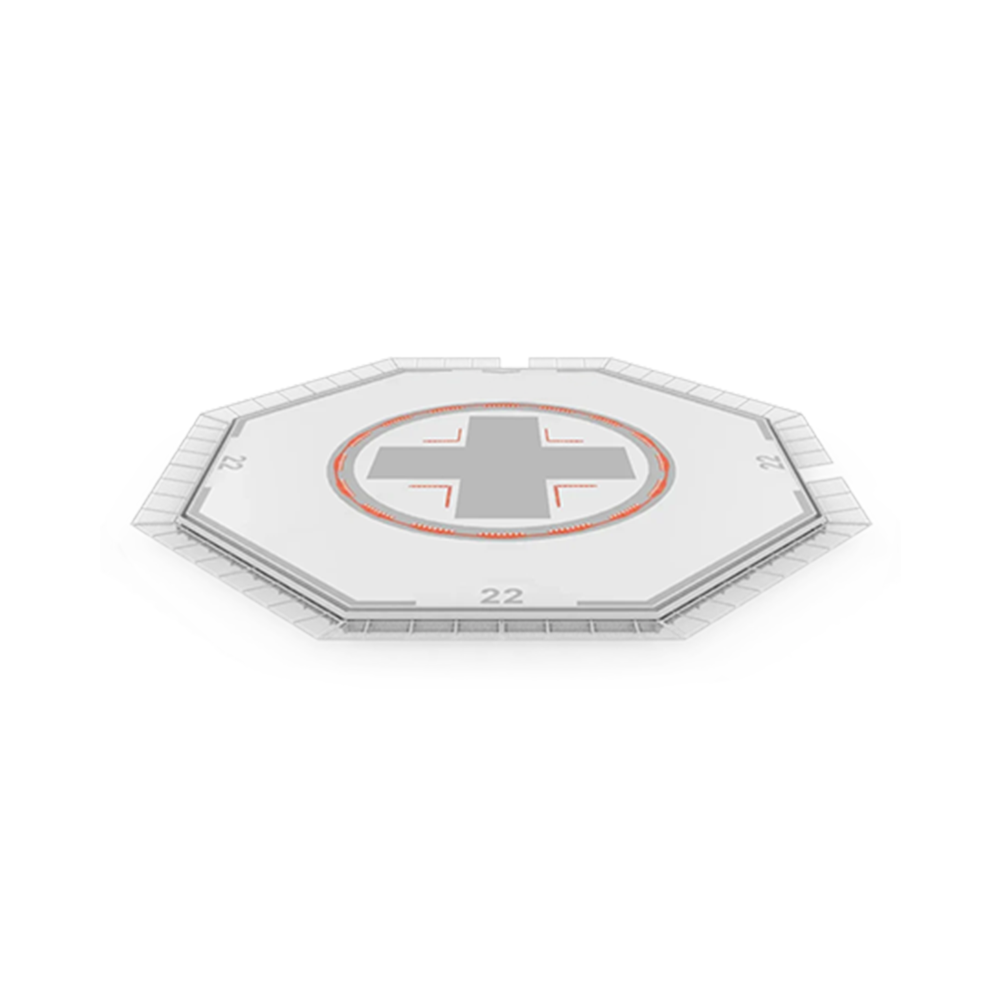

The Frictape Netlight for Hospital Helipads is a Circle & Cross lighting system built specifically for onshore hospital helipad operations and fully compliant with CAP 1264 — the UK CAA’s most comprehensive specification for hospital helicopter landing areas. The system is available in three configurations: Circle & Cross, Circle & Chevron, and Circle-only, each meeting the CAP 1264 display design requirements for touchdown and positioning marking illumination. Light modules are custom-designed and installed either directly into the Frictape landing net (Classic Netlight) requiring no deck drilling, or fixed to the helipad surface via screws or rivets (Fixed Netlight). Total installed height across the entire system — including light modules, baseplate, and landing net — remains under 25 mm. All components are tested to withstand loads from the heaviest operational helicopters.

The core technology is drawn directly from Frictape’s offshore-rated Circle & H Netlight, first deployed in 2016 and since installed on hundreds of helidecks globally. The Classic configuration eliminates the need for any bolts, screws, or rivets in the helipad surface, preventing structural penetrations that could cause water ingress or surface damage. Obstruction-free walkways can be designed in up to four directions, allowing unobstructed stretcher and wheelchair movement across the active helipad surface. The modular structure allows individual light modules to be replaced without removing the full system, and the Classic version can be removed entirely and reinstalled on a different helipad if required. The material and component quality is built to offshore standards — designed for long service life and low total ownership cost.

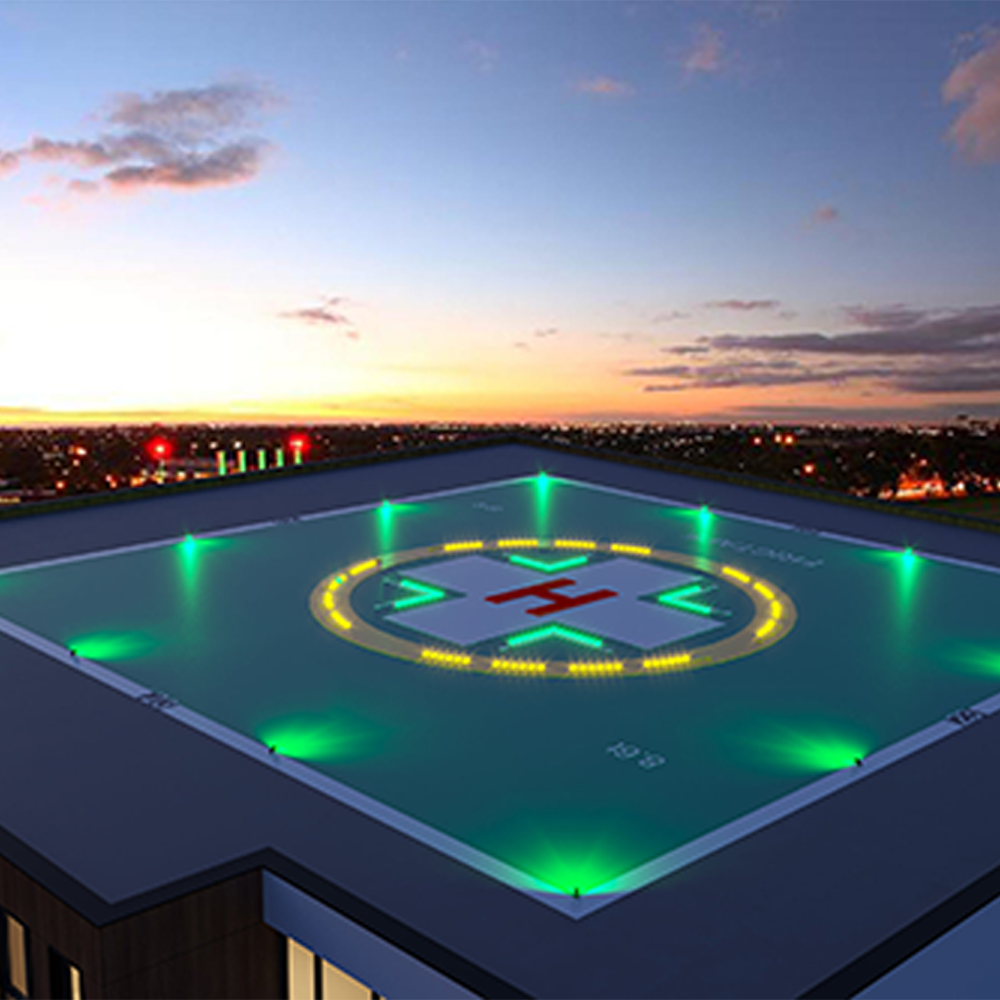

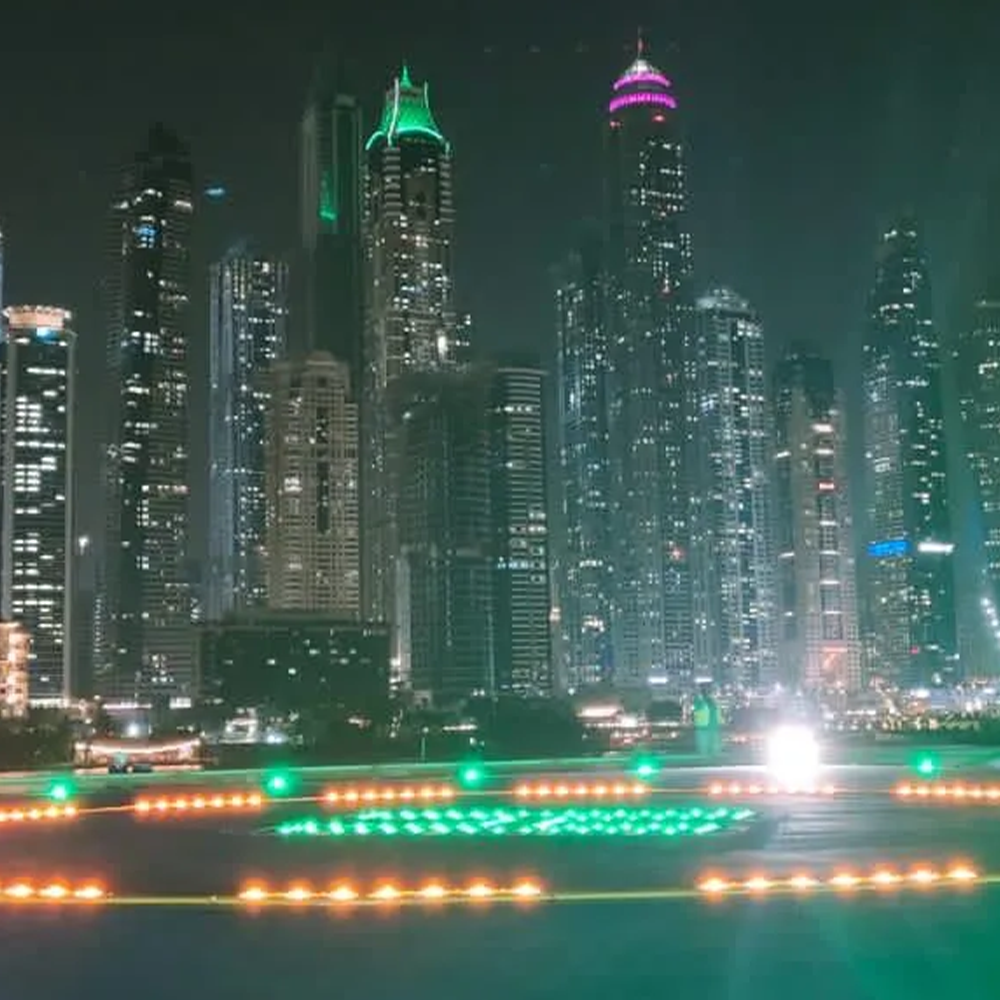

Frictape Netlight for Hospital Helipads is deployed at NHS hospitals, trauma centres, air ambulance bases, and emergency medical facilities across the UK and internationally — wherever helicopter emergency medical service (HEMS) operations require certified Circle & Cross lighting for safe night and low-visibility approaches. Pilots operating in low-visibility or night conditions use the Circle & Cross illumination to identify the helipad location, confirm correct approach alignment, and select a safe touchdown point before final descent.

Leader Infra supplies this CAP 1264 compliant hospital helipad lighting system for medical facility projects — bringing the same offshore-proven Netlight technology to onshore emergency helipad environments, with a no-drill installation option, long service life, and the lowest lifetime costs in the industry.

FAQ — Can the Frictape Netlight for Hospital Helipads be installed without modifying the helipad surface structure? Yes. The Classic Netlight configuration integrates light modules directly into the Frictape landing net, requiring no drilling, bolting, or riveting into the helipad surface. This is particularly important on hospital rooftop helipads where any structural penetration risks water ingress into the building below and may require costly waterproofing remediation after installation.
